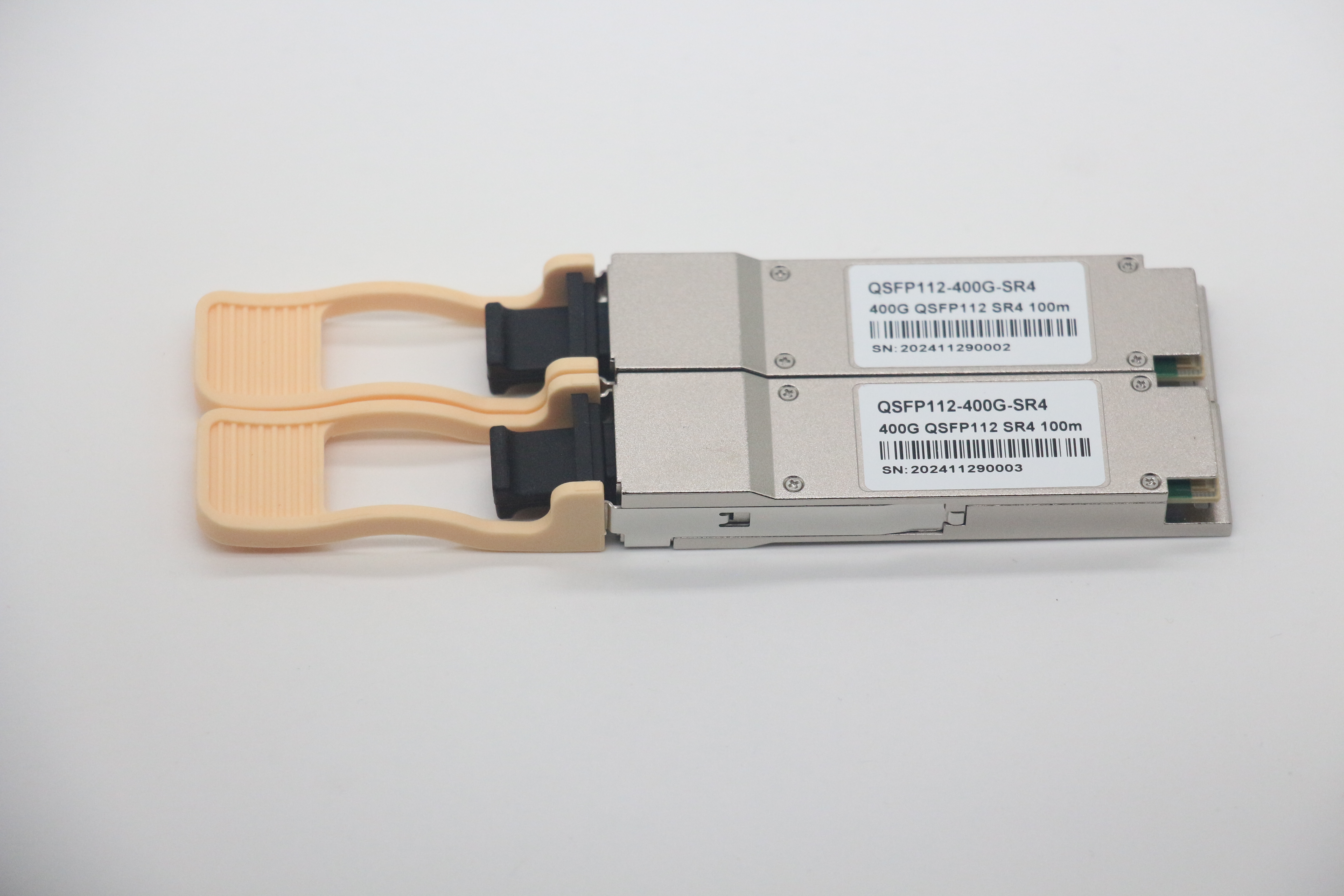

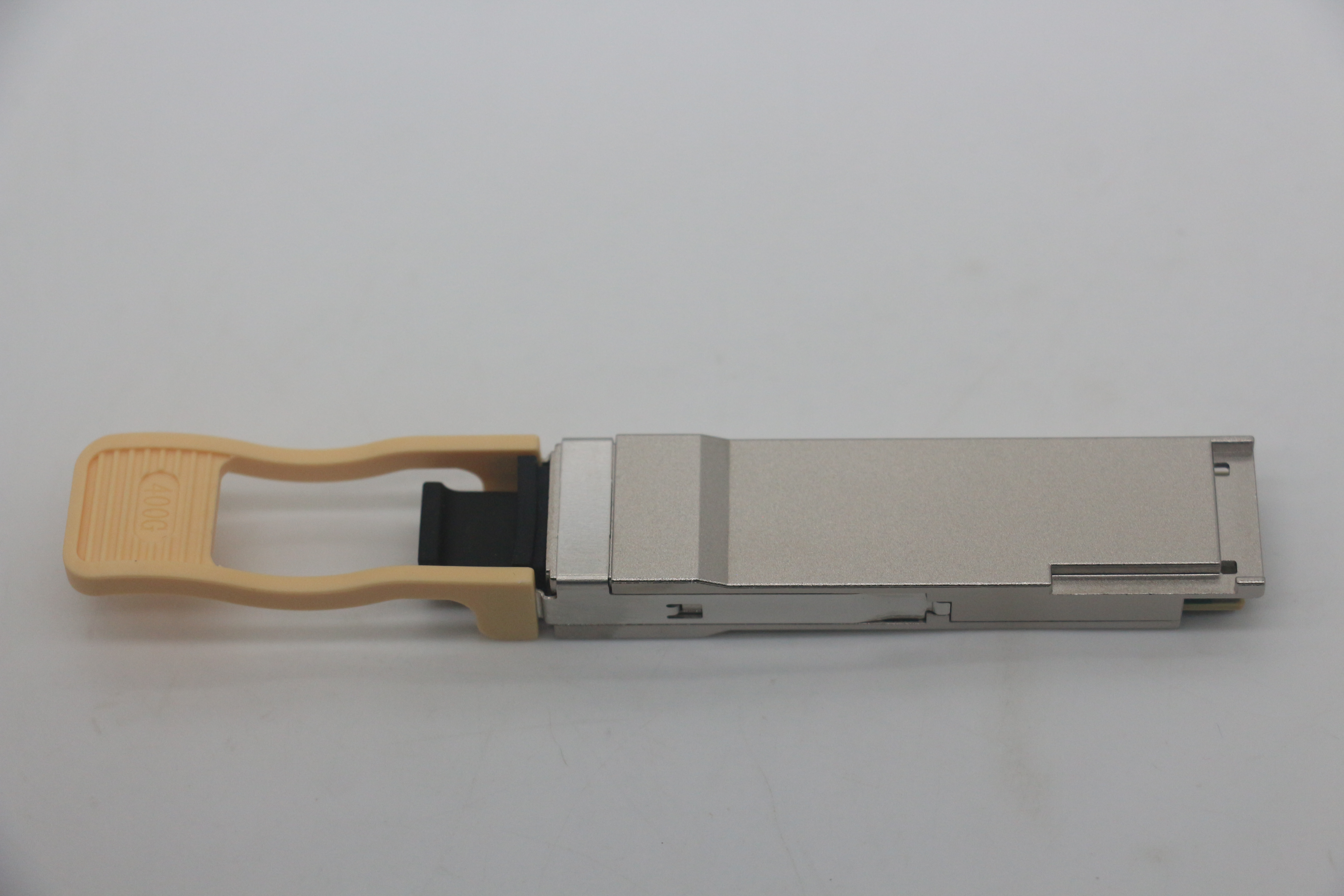

QSFP112-400Q-SR4
400G Q112 SR4 Optical Transceiver
High-performance 400G QSFP SR4 optical transceiver module for short-reach data center interconnects, It delivers 400Gbps bandwidth over multi-mode fiber with high port density and low power consumption.
Key Features
- Hot-pluggable QSFP112 form factor
- Data rate 106.25 Gb/s PAM4 per lane
- 4x 106Gbps PAM4 transmitter and PAM4 receiver
- Compliant with QSFP112 MSA, CMIS and IEEE802.3
- Digital diagnostics monitoring
- RoHS compliant
Product Highlights
Category:400G 光模块
Availability:In Stock
Lead Time:1-2 weeks for standard orders
Specifications
Form_factor
QSFP112
Data_rate
400Gbps
Wavelength
850nm
Reach
60m (OM3）to 100m(OM4)
Component
VCSEL + PIN
Connector
MPO-16/APC
Power_consumption
≤8W
Operating_temp
0 to 70C
